New model AHD 4Ch 1080p cctv DVR Kit Home Security h.264 4ch dvr cctv camera kit with 1TB hard disk

FOB Reference Price:Get Latest Price
$117.00 - $122.00 / Set | 1 Set/Sets (Min. Order)
Type:
4CH 1080P DVR kit
Style:
Dome Camera
Resolution:
1920 x 1080
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
A0401LMAT200F
Special Features:
Waterproof / Weatherproof
Sensor:
CMOS
DSP:
F23+FH8536E
Image Resolution:
2MP
Effective Pixels:
1920*1080
Main processor:
Hi 3520D V200
Focus Length:
3.6mm
Infrared LED:
3pcs Array *20u IR-LED
Infrared Distance:
20M
Video input:
4ch BNC
Video output:
1ch VGA, 1ch HDMI
Playback:
4ch(analog input mode)
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1* 4CH 1080N AHD DVR
4* IR Camera 3.6mm
4* 18M cables
1*4-way splitter
1* 2A+1* 4A power adapter
1* USB mouse G.W:6Kg/set
package by carton
Port
Guangzhou,Shenzhen



New model AHD 4Ch 1080p cctv DVR Kit Home Security h.264 4ch dvr cctv camera kit with 1TB hard disk

Product Description

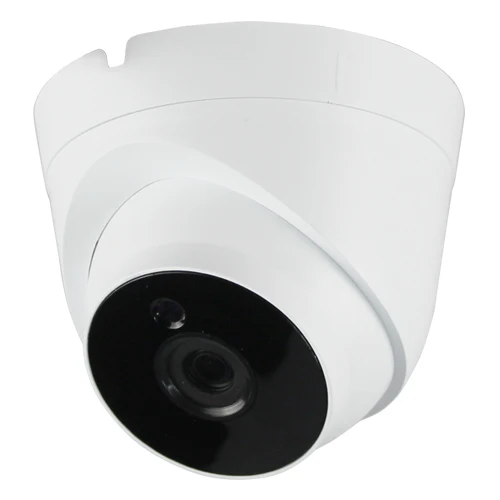

Plastic Dome IR Camera
Plastic Dome IR Camera
3pcs*20u array IR-LED
IR Range 20M
Standard Board lens 3.6mm
Standard White color

DVR Specification

Coding ability:

4*AHD/CVI/TVI/XVI 1080N(25fps)
IP:8*1080P;12*960P
Blend:2*AHD/CVI/TVI + 2*720P(IP)

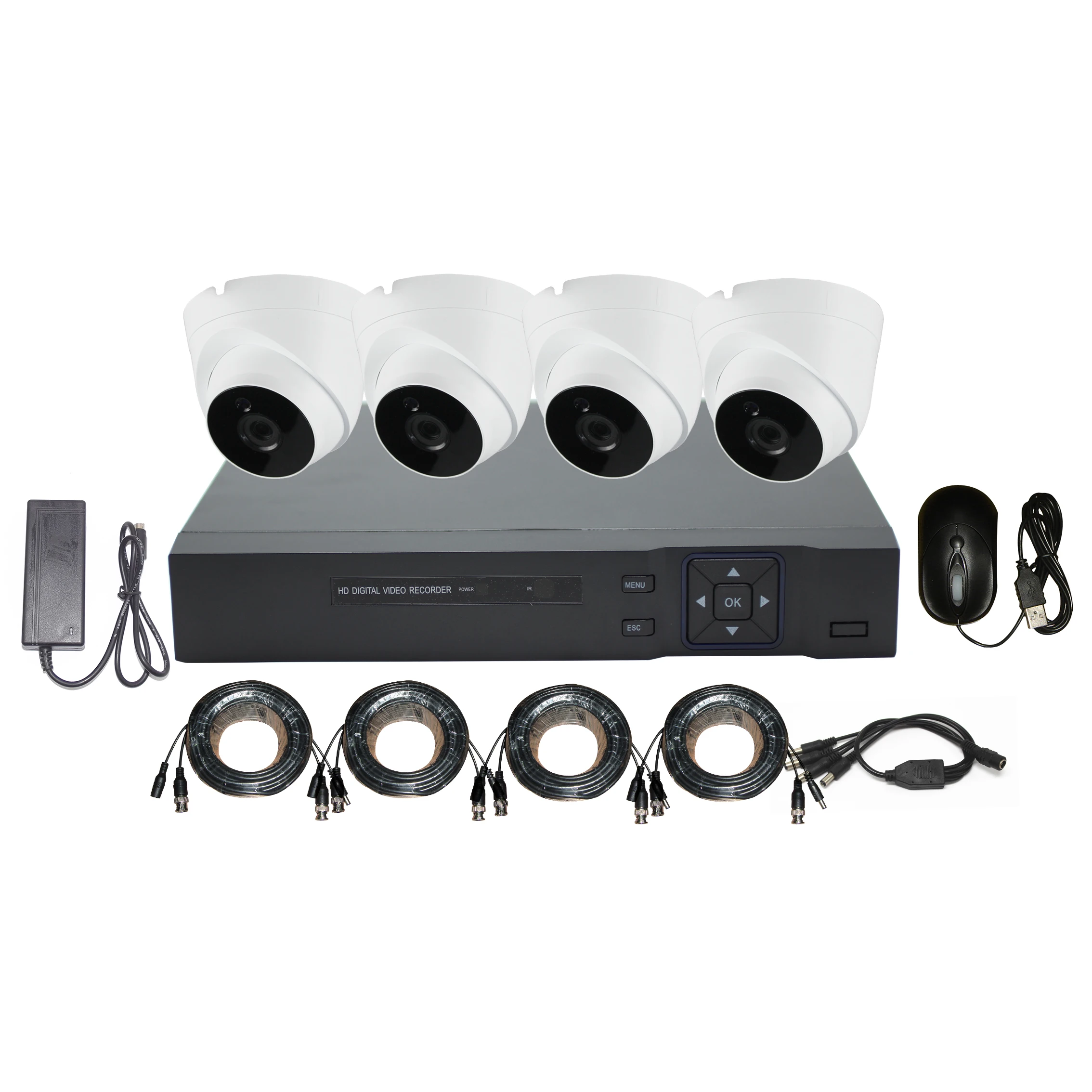

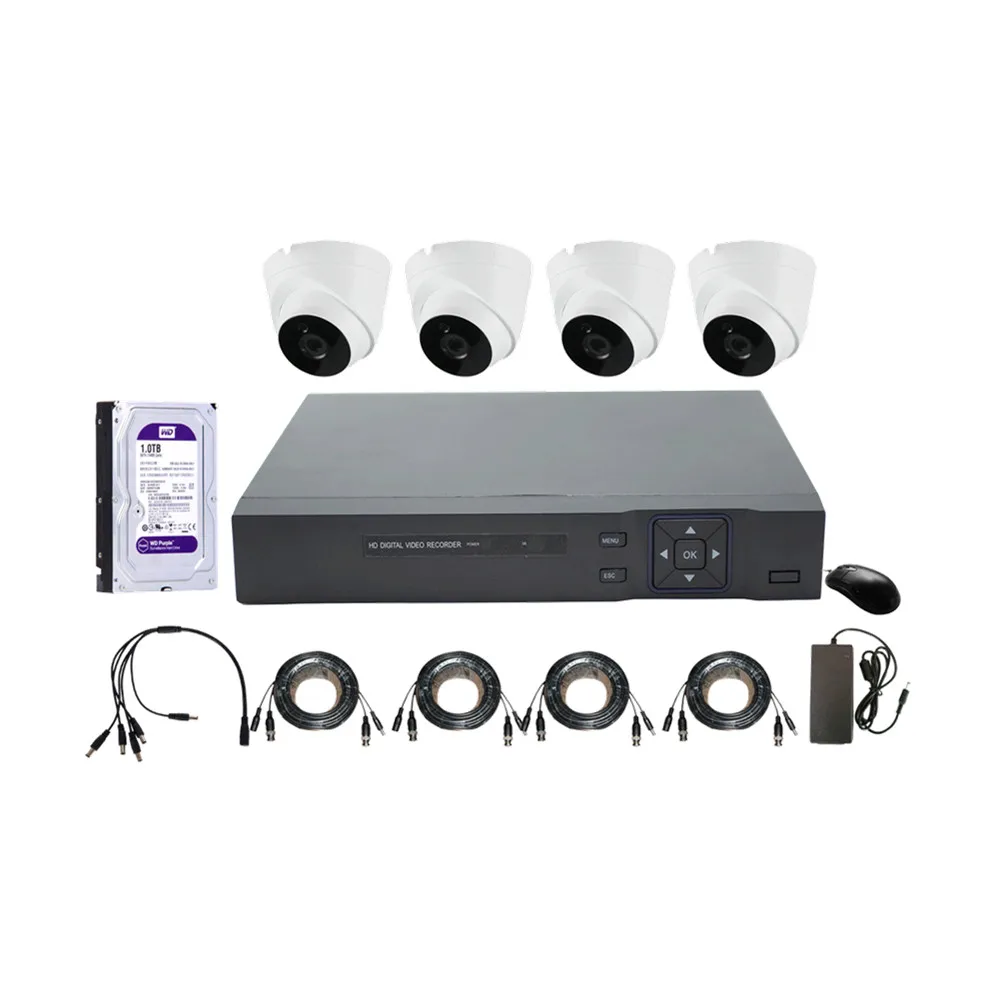

Package Inculded

1* 4CH 1080N AHD DVR
4* IR Camera 3.6mm

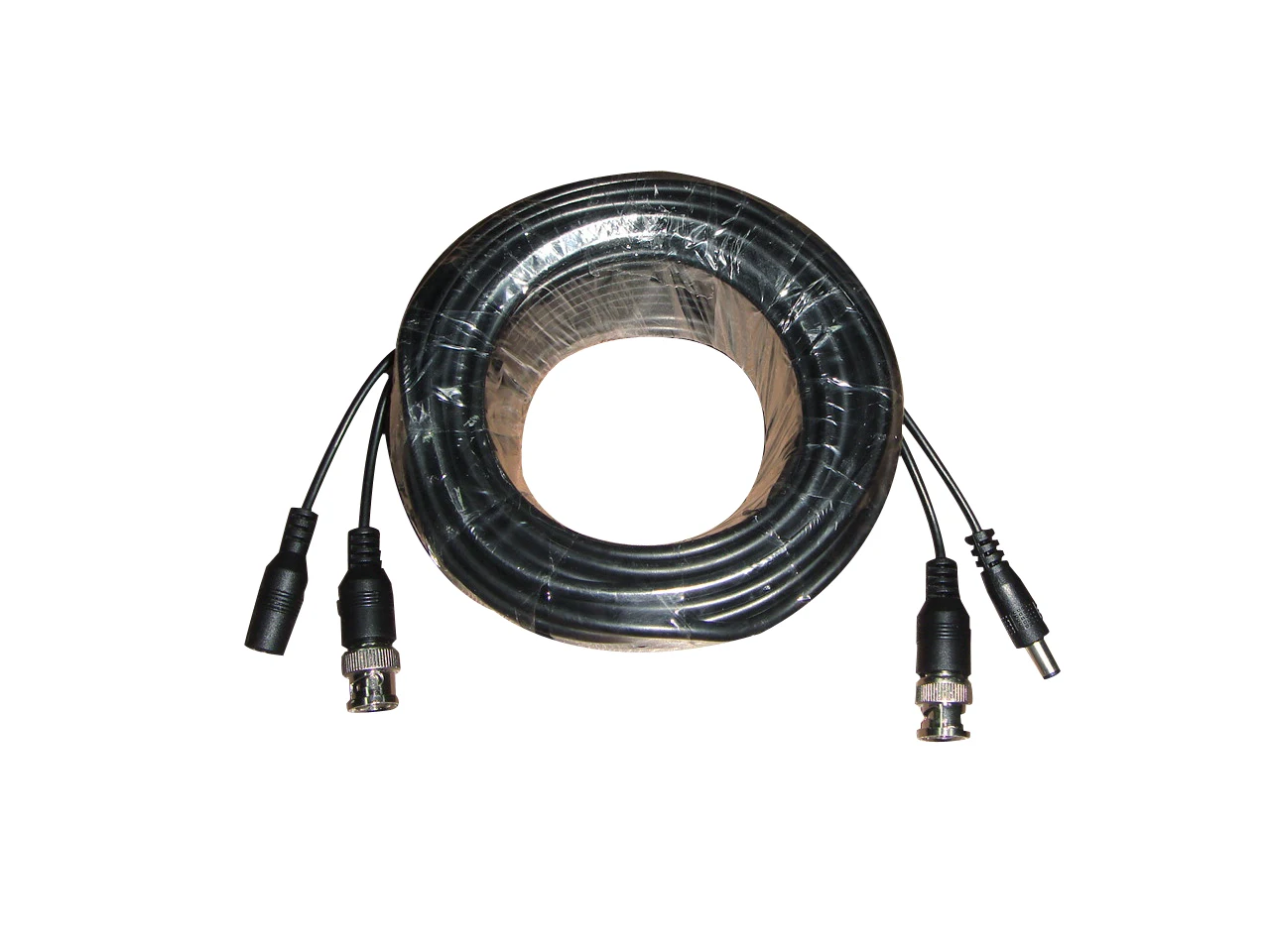

4* 18M cables
1*4-way splitter
1* 2A+1* 4A power adapter

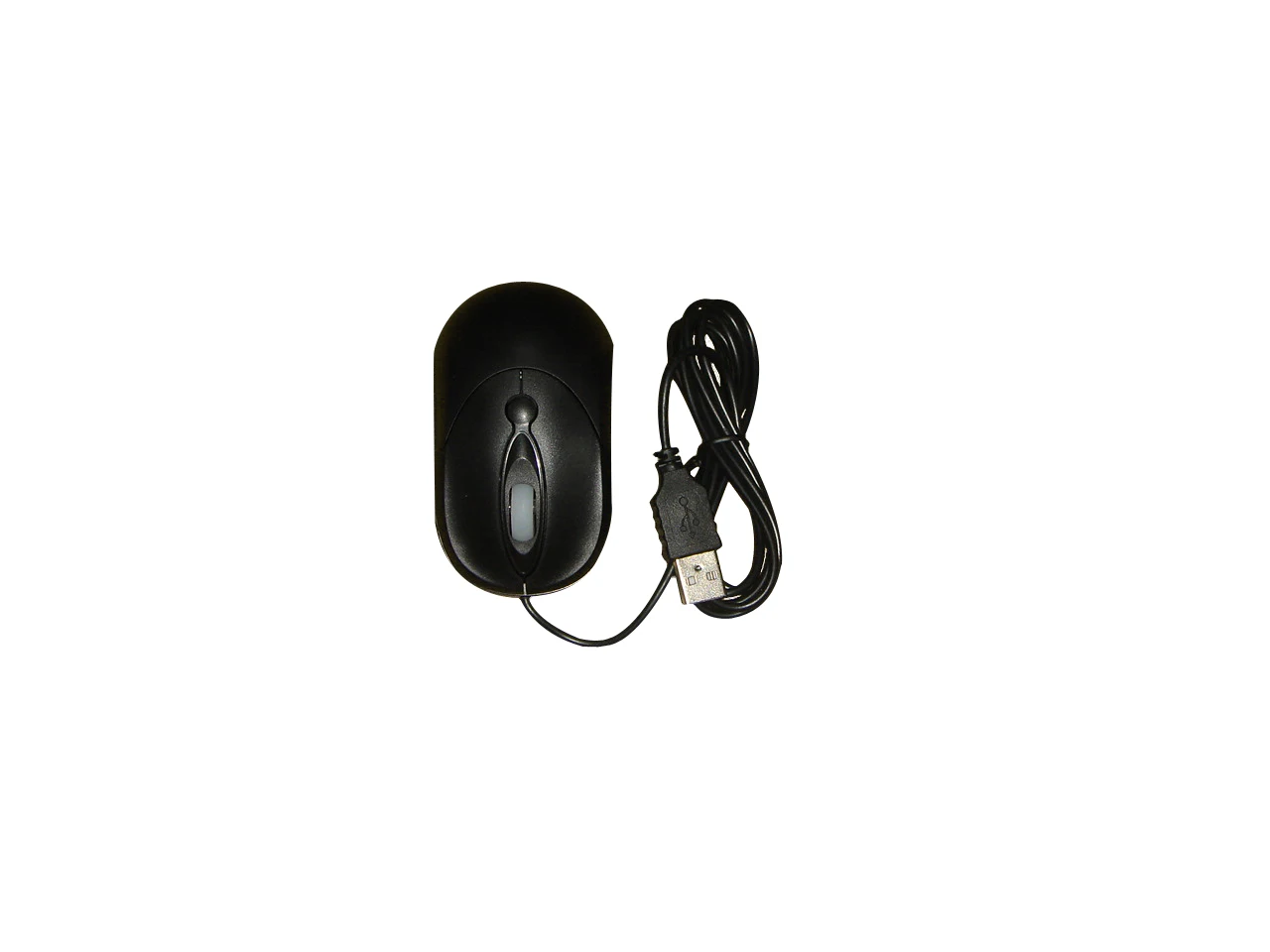

1* USB mouse

1*1TB Hard Disk



 AT20 TFAR20 (12).jpgDSC06169.jpgDSC06201.jpgDSCF1038.JPG_.jpgKX6104AT20.jpg-3.png

Details




SystemMain processorHi3520D V200
Operating systemembedded Linux
System resourcesSimultaneously multi-channel real-time recording, playback, network operation, USB backup
InterfaceOperator interfacesupport 16-bit true color graphical menu interface and mouse operation
Preview 1/4
VideoCodecH.264
Monitor qualityVGA,HDMI:HD
Playback quality1080N
Encode ability4*1080N
Decode ability1*1080N
Multi-mode inputanalog: 4*AHD 1080N; 4*960H; 4*TVI; 4*CVI;
hybrid: 2* AHD-M(analog) +2*720P( network )
Network only:4*720P;4*1080P;8*720P;8*1080P;1*1080P
Motion DetectionEach screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
AudioAudio compressionG.711A
Intercomsupport
Record & playbackRecord modemanual>alarm>motion detection>timing
Local Playback4ch(local input mode)
Search modeSearch by time, calendar, event, channel
Storage & backupSpace occupation720P ~20G/ day*channel ;960H 12~20G/ day*channel;audio:691.2M/ day*channel
Video storageHDD, network
Backup modeNetwork, USBhard disk, USB burner, SATA burner
External InterfaceVideo input4ch BNC
Video output1ch VGA, 1ch HDMI
Loop VoutN/A
Audio input4ch RCA
Audio output1ch RCA
Alarm input0( Can be extended to 4ch)
Alarm output0( Can be extended to 1ch)
Network interfaceRJ45 10M/100M self-adaption
PTZ control1*RS485, Support kinds of PTZ protocols
USB2* USB ports
HDD1*SATA ports (Max 6TB/per)
Wireless3G, WIFI (extend via USB)
GeneralPower supply12V/2A
Power Consumption<15W (without HDD)
Temperature0℃-+55℃
Humidity10%-90%
Working environment86kpa—106kpa

Camera
Image Sensor1/2.7" 2.1MP CMOS Sensor,1080P
Image Resolution2MP 1080P/ 960H
Effective Pixels 1920*1080
TV SystemPAL/NTSC
Electronic Shutter1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio≥50dB
Scanning SystemProgressive Scan
Lens
Focus Length3.6mm (6mm Optional)
Focus ControlFixed
Lens TypeFixed
Pixels 3M Pixels
Auto Iris SupportNO
Night Vision
Infrared LED3 pcs x 20u  IR-LED
Infrared Distance20M
IR StatusUnder 10 Lux by CDS
IR Power OnCDS Auto Control
Camera Features
Day/Night  YES
OSD Menu Language YES
White Balance AUTO / MANUAL
Gain Control AUTO
Noise Reduction DNR
Picture AdjustmentYES
DWDR YES
OSD Support YES
General
HousingPlastic
BracketNO
Dual VoltageNO
IR Cut FilterYES
HeaterNO
Audio/
Operation Temperature-10℃ ~ +50℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%, 600mA
Weight300g
