Cheap 8ch 1080P cctv wireless camera bullet wifi NVR kit with 30M IR distance

FOB Reference Price:Get Latest Price
$165.00 - $169.00 / Set | 1 Set/Sets (Min. Order)
Type:
8CH WiFi IP Kit
Style:
Bullet WiFi camera
Resolution:
1920 x 1080
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
HM-699HE-Z8A
Special Features:
Waterproof / Weatherproof
Sensor:
CMOS
Board Lens:
3.6mm fixed
Main processor:
Hi 3536D
Video input (IP):
8*1080P
Local payback:
2*1080P
HDD:
1* SATA(Up to 8TB for each disk)
Processor + sensor:
HI3516EV100+SC2235P 1/3" Progressive Scan Sensor
Infrared distance:
20-30M
Video compression:
H.265+
Effective pixel:
HD1080P
Power supply:
12V/2A
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs 36*30*28 cm;N.W 5.5kg;G.W 7KG
2pcs/CTN:37*31*58cm; N.W 11.5kg; G.W 13kg
Port
Guangzhou,Shenzhen
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 15 To be negotiated

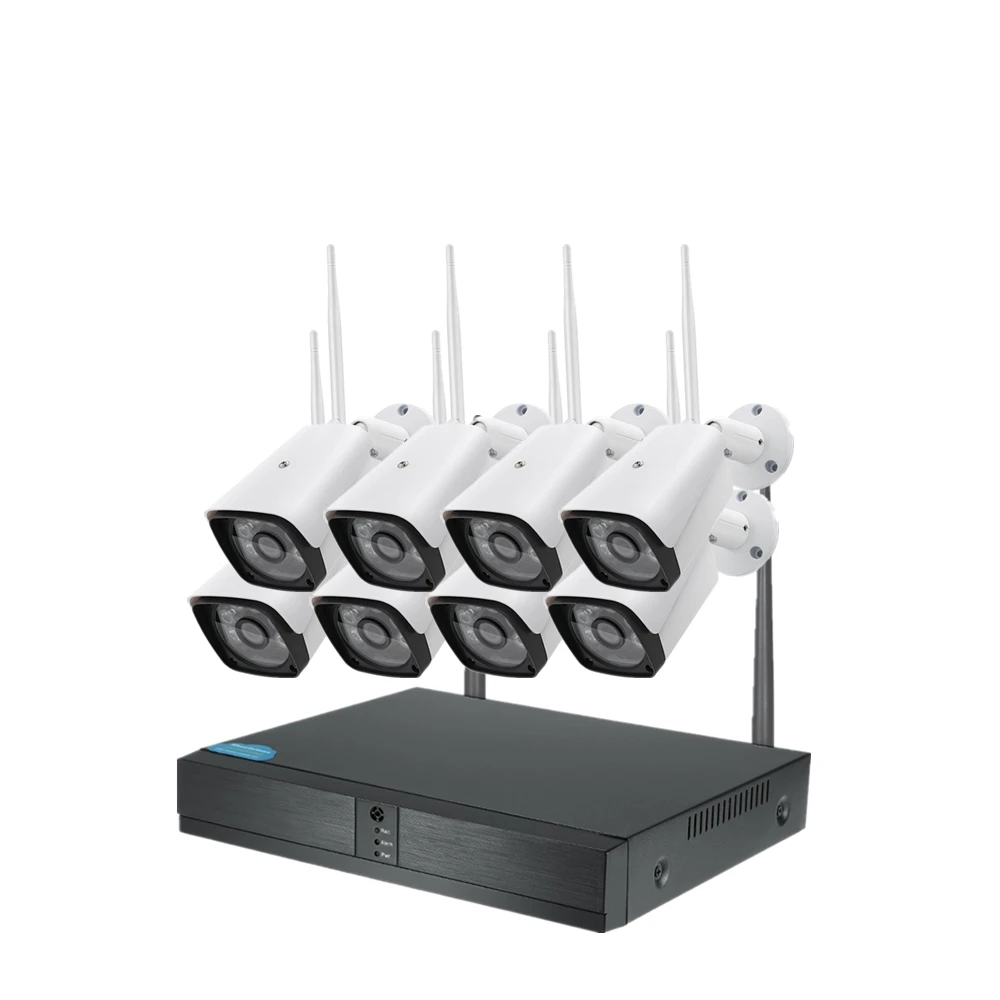

Cheap 8ch 1080P cctv wireless camera bullet wifi NVR kit with 30M IR distance

Product Description

.jpgH.264+ 8ch 100W WiFi kit 8CH 1080P WiFi NVR
WiFi 1080P CAM
60 duckbilled housing
Infrared distance: 20~30 m
HD lens 3.6MM
IR cut filter with auto switch



Accessories:

* 8CH 1080P WiFi NVR (not HDD) X 1
* WiFi 1080P Cameras X 8
* 1m Network line X1
* DC 12V 2A Power adapter X1
* DC 12V 1A Power adapter X8
* USB Mouse X 1
* User Manual X1
* Screw bag X8



6672.jpg8-Z6673.jpg11936466519489840.jpg791375425831908784.jpg878733295516326560.jpg-4.jpg

Details

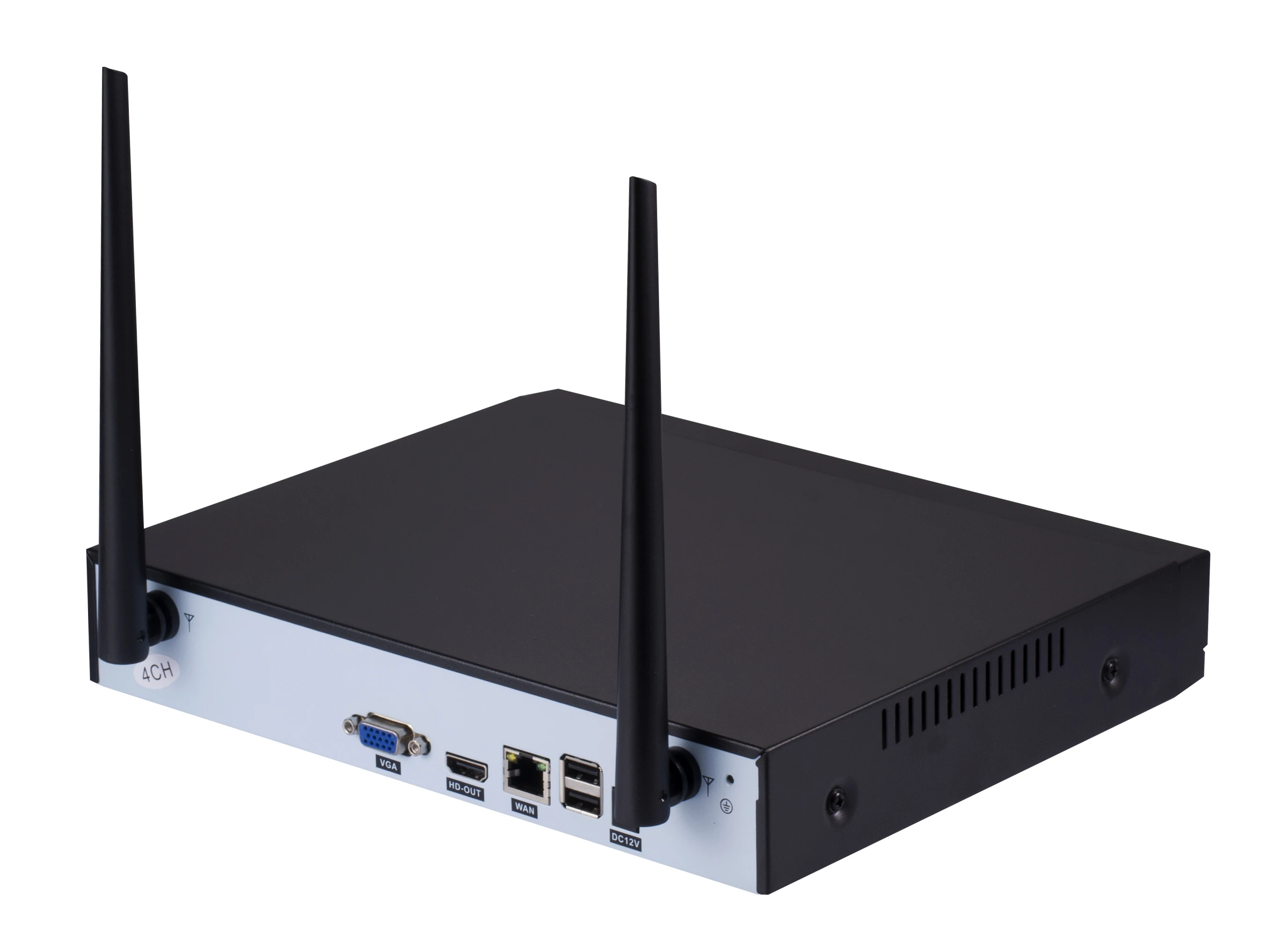

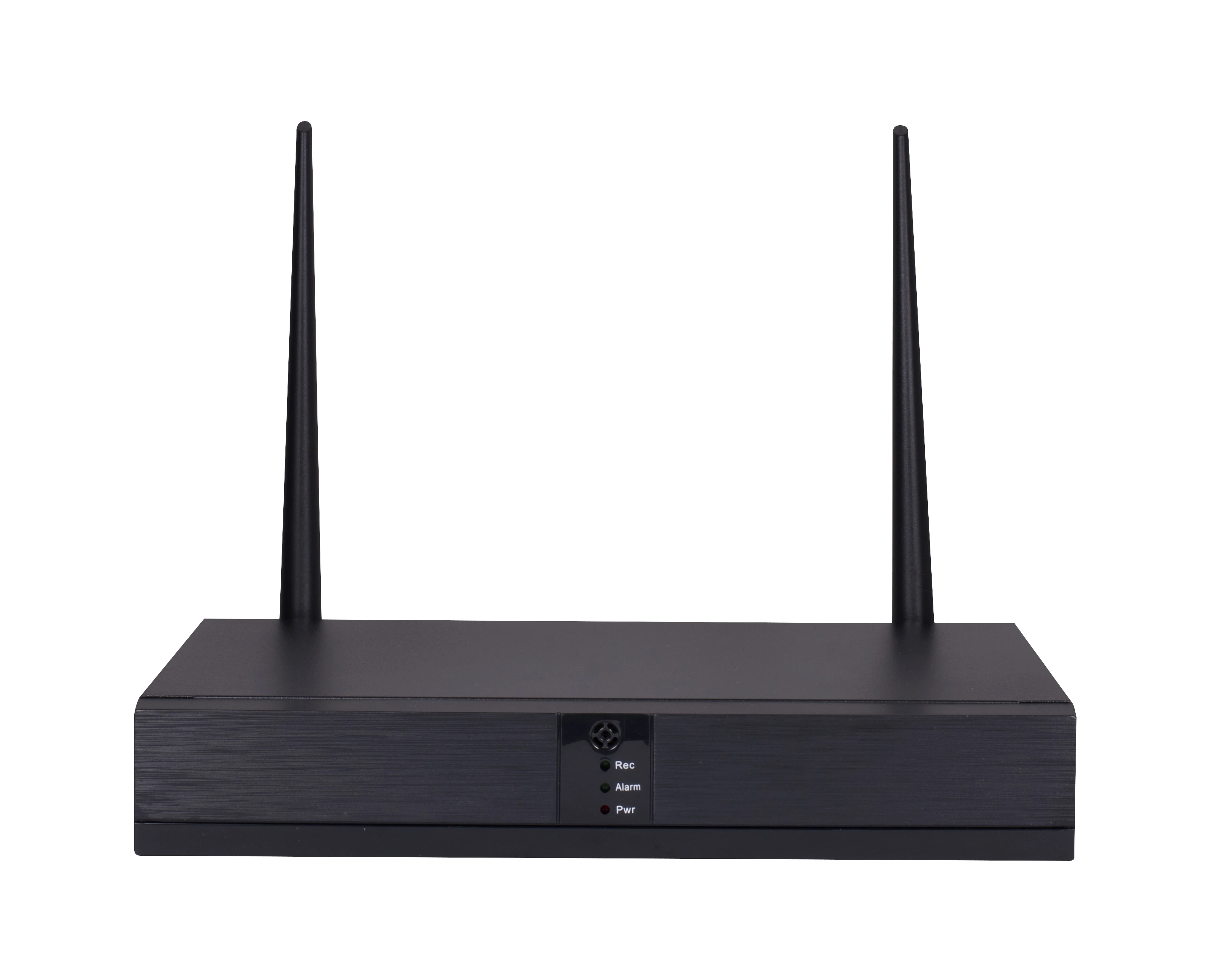

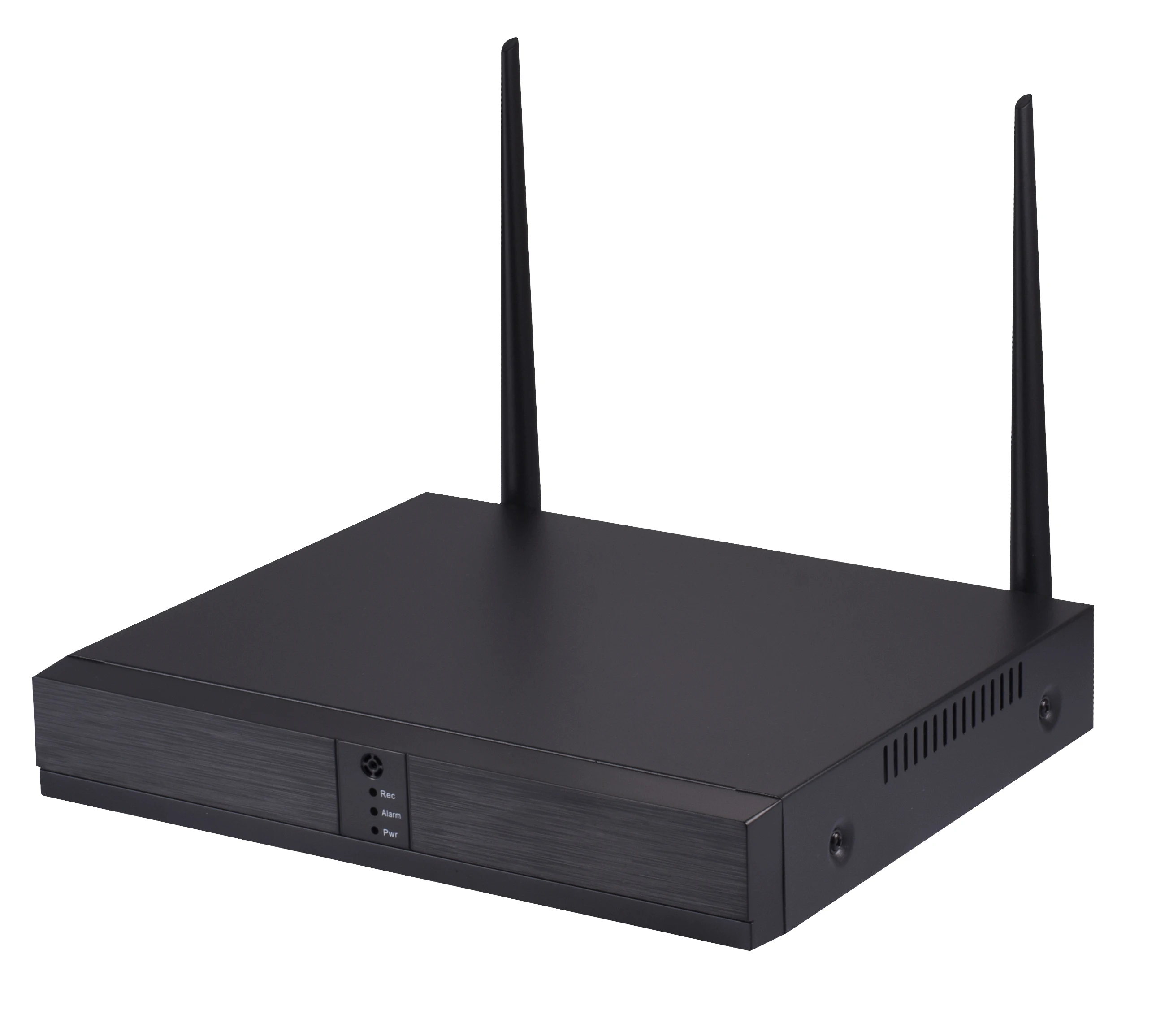

WiFi NVR Specification
SystemMain processorHi 3536D
Operating SystemEmbedded Linux
System resourcesSimultaneous multi-channel real-time recording, playback, network operation, USB backup
InterfaceOperator interface16-bit true color graphic menu operation interface, support mouse operation
Preview1/4/8
Video input (IP)8*1080P
Access bandwidth24Mbps
Forwarding bandwidth24Mbps
Video compressionH.265+
Display qualityMax 1080P
Playback quality1080P
Decode2*1080P
VRUnsupport
Motion detectionSupport(depend on camera)
AudioAudio compressionG.711A
IntercomUnsupport
Record & playbackRecording modeManual>Alarm>Dynamic Detection>Timing
Local payback2*1080P
Search modeSearch by Time/Calendar/Event/Channel
Record storageHDD,Network
Backup modeNetwork backup, USB hard disk, USB burner, SATA burner
External
Interface
Video output1ch VGA,1ch HDMI HD output
Audio I/O0/0
Alarm I/O0/0
Network interface1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI
USB interface2*USB2.0 ports
HDD1* SATA(Up to 8TB for each disk)
ESATANo
Serial interfaceNo
OtherONVIFNo
Power supply12V/2A
Power Consumption<10W(Without HDD)
Work environmentTemperature:0℃-+55℃ , Humidity:10%-90%RH , Atm:86kpa-106kp

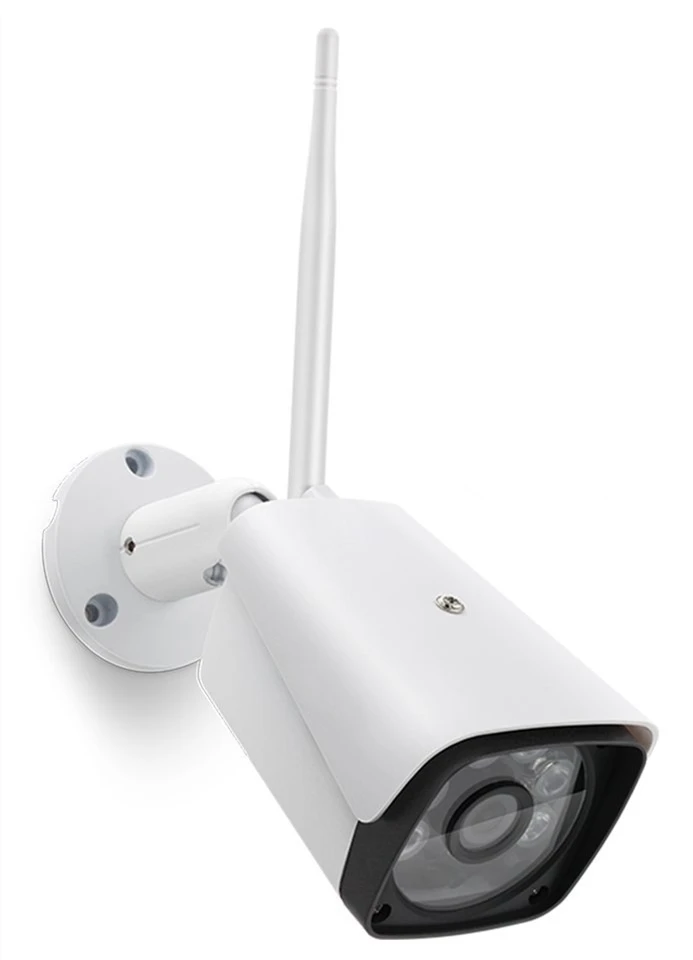

WiFi Camera Specification
To configureProcessor + sensorHI3516EV100+SC2235P 1/3" Progressive Scan Sensor
Low illuminationColor: 0.1 Lux;  B/W: 0.01 Lux
Effective pixelHD 1080P
LensHD lens 3.6MM
Infrared distance20~30 m
Day&nightIR cut filter with auto switch
GeneralsettingSaturation, brightness and contrast ;
 are adjustable through IE browser or client software.
Video compressionH.265+
temperature-10℃-+60℃
humidity10%-90% RH
Power supplyDC12V 1A
Consumption MAX 6W
Waterproof gradeIP66
